Tech Pick: E+H Liquistation (Sampler)

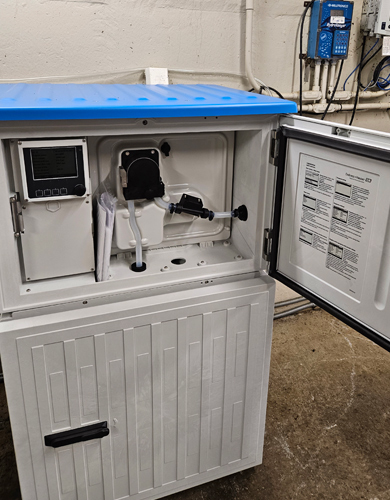

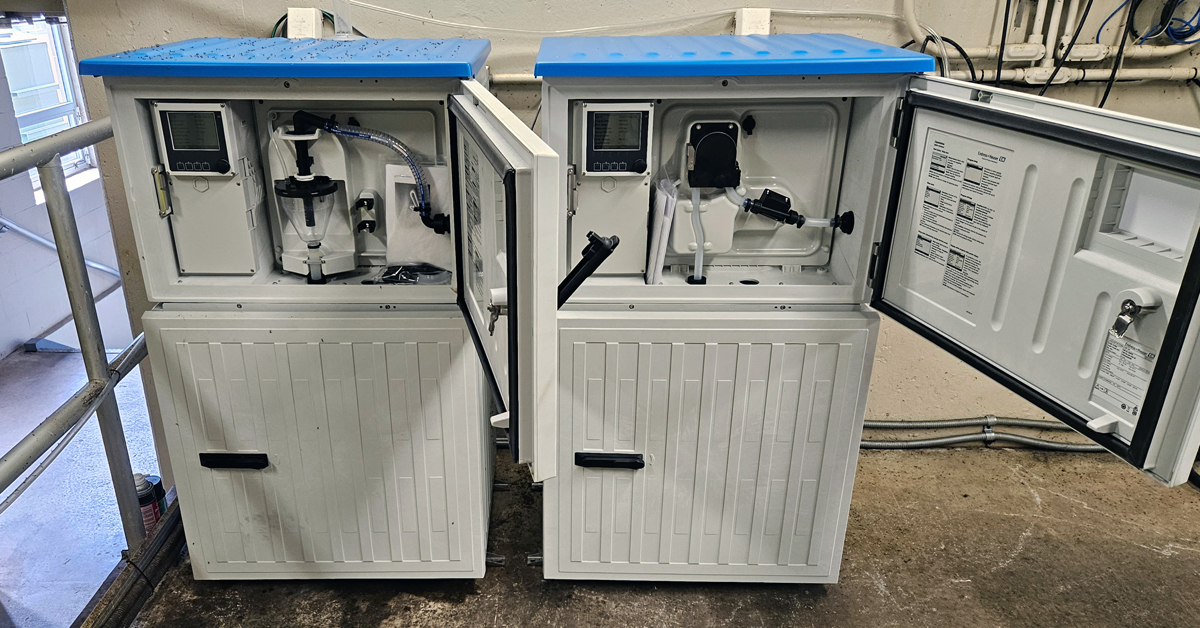

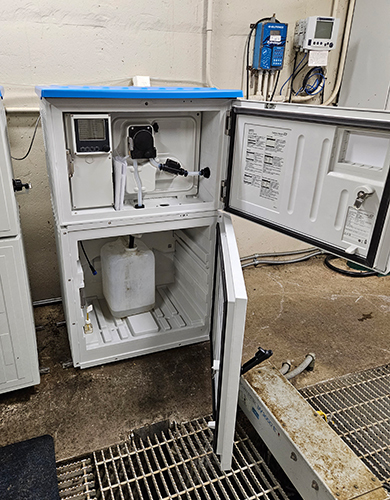

When it comes to reliable automatic water samplers for wastewater treatment plants, Energenecs service technicians consistently turn to one standout model: the Endress+Hauser Liquistation CSF34. After more than a decade of experience installing and maintaining samplers in the field, their team has found the CSF34 to offer the best combination of performance, simplicity, and cost-effectiveness.
Easy Maintenance
Unlike peristaltic-style samplers, the CSF34 uses a vacuum-based system that eliminates the need for consumable tubing. This results in fewer routine expenses and less downtime over the life of the unit. The CSF34 is designed with serviceability in mind. No special tools are required for disassembly, and cleaning the unit is simple and fast. “If I’m doing the maintenance, it takes 15 to 20 minutes—and that’s once a quarter at most,” Sampo added. “It’s very user-friendly.”
Smart, Integrated Features
The CSF34 goes beyond basic sampling. It offers:
- Connectivity for up to four Memosens sensors, turning it into a complete measuring station.
- Heartbeat Technology enables status-oriented maintenance of the device, saving resources and costs.
- Full SCADA integration with optional Allen Bradley Ethernet/IP communications.
SPECS AT A GLANCE
Functions: Stationary sampler
Suction height: 8m (26.25ft)
Cabinet: Plastic ASA+PC
Process temperature:
Sample temperature 2 to 50°C (36 to 122°F)
Process pressure:
max 0,8bar ( 11.6PSI)
Competitive Pricing
Despite its high-end features, the CSF34 remains price-competitive with leading brands. Sampo notes:
Energenecs recommends the Endress+Hauser Liquistation CSF34 for municipalities and industrial clients seeking a dependable, low-maintenance sampling solution. With over a decade of proven field performance and strong customer satisfaction, it has become a go-to tool for their service team. Further, when purchased through Energenecs, as an Endress & Hauser System Integrator Partner, this unit comes with a manufacturers 3 year warranty. For more information or support with CSF34 installation and service, contact the Energenecs team.
